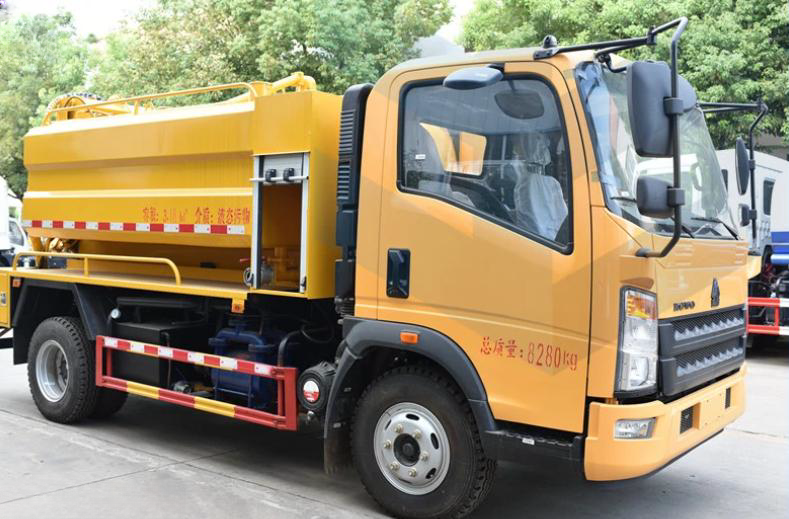

Vacuum sewage suction truck is used for removing and transporting
sand, stones, grease, sludge and other debris from sewage pipelines
and / or sanitary sewer by vacuum suction pump.
It also could provide efficient solution to industrial vacuum
requirement . Hydraulic system and pneumatic components could be
added to fulfill the requirements of specific operations.
Product Parameter
| Vehicle Description | |
| Overall dimensions | 8800*2500*3200mm |
| GVW | 18000kg |
| Curb weight | 7000kg |
| Chassis brand | DONGFENG |
| Traction type | 4*2 |
| Tanker Description | ||
| Tanker | Capacity | 10000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Type | Double vacuum pump | |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 | |
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5
meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. | |
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank | |
| Chassis Description | ||
| Chassis model | DFL5140 | |
| Steering | LHD/RHD | |
| Cab | Kingrun one and a half row cab , with A/C | |
| Wheelbase | 5000mm | |
| Tire specification | 10.00R20 | |
| Tire quantity | 6 tires and 1 spare tire | |
| Engine | Engine model | Dongfeng Cummins, B190 33 |
| Emission level | EURO 2 | |
| Displacement/output | 5900ml/140kw | |
| Horse power | 190hp | |
| Gear box | Model | DF8S1000 |
| Number of gears | 8-speed | |
| Brake system | Air break | |
| Axle | Front | 6T |
| Rear | 10T | |
| Suspension | Front | 8 |
| Rear | 12+9 | |
| Fuel tanker | Type | Steel fuel tank |
| Capacity | 160L | |








|
