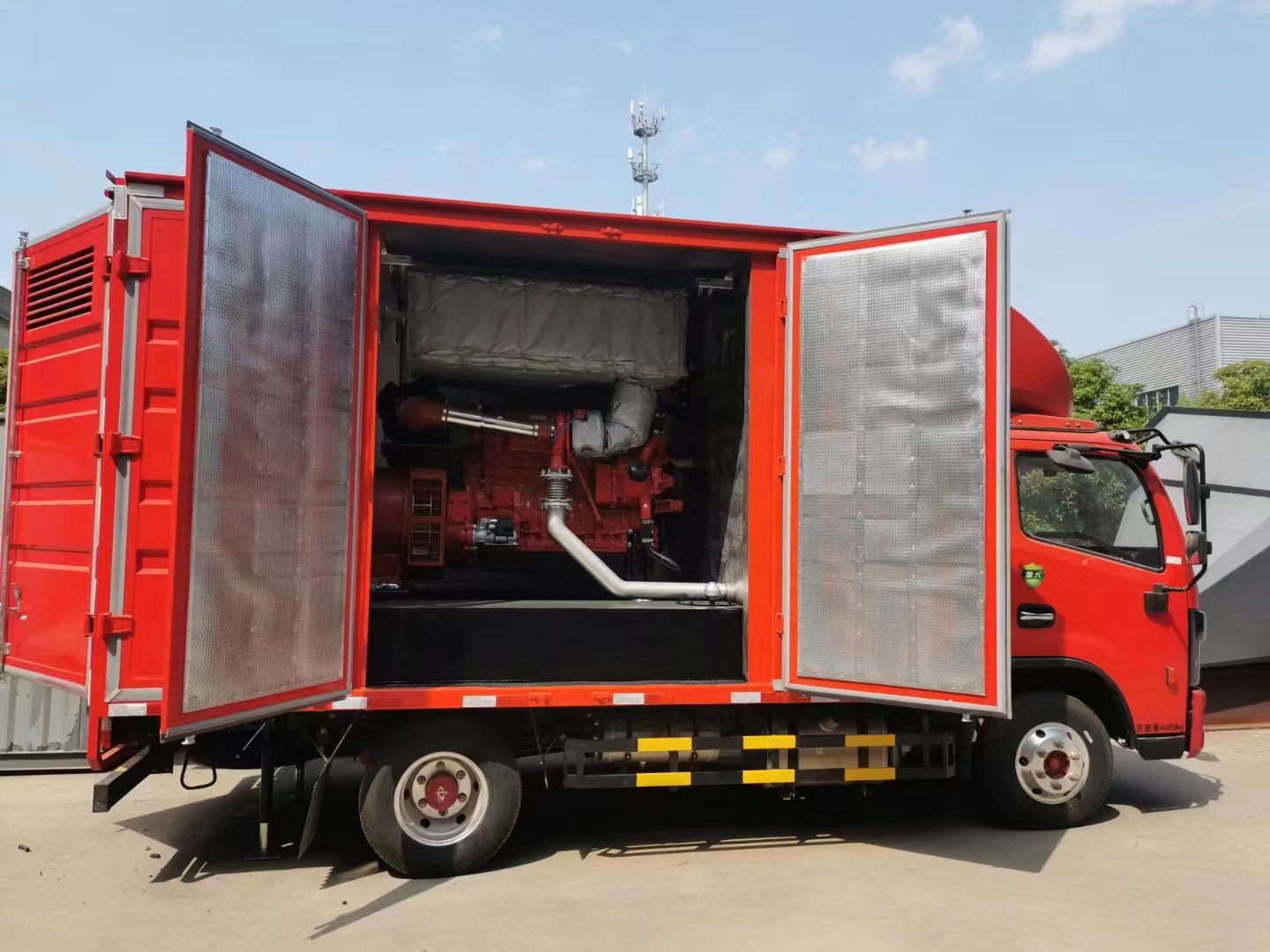

CAMC 1500@50Hz PG+ Generator Set Red Color Original Quality Truck
Mounted Road Transport
The temperature of the generator set rises rapidly when the size of
the diesel engine generator set shrinks, reaching the ignition
point of diesel. When the diesel oil is ignited, the mixed gas
burns violently, and the volume expands rapidly, pushing the piston
down, which is called 'work'.
The cylinders perform work in a certain order, and the thrust
acting on the piston becomes the power to drive the crankshaft
through the connecting rod, thereby driving the crankshaft to
rotate. Using the principle of 'electromagnetic induction', the
generator will output the induced electromotive force, and the
current will be generated through the closed load circuit. Only the
most basic working principle of the generator set is described
here. In order to obtain usable and stable power output, a series
of diesel engine and generator control, protection devices and
circuits are also required.
Product Description
Machine data |
Type | in-line, six-cylinder, four-valve, four-stroke |
Intake method | Supercharging, air-to-air cooling |
Bore X stroke | 130mmX161mm |
Displacement | 12.8L |
Compression ratio | 11.5:1 |
Firing sequence | 1-5-3-6-2-4 |
Cylinder distance | 162mm |
Combustion chamber type | ω type |
Engine dimensions (length X width X height) | 1360x898x1138mm |
Engine weight (including flywheel, excluding generator) | 1065kg |
Moment of inertia of flywheel | 2.9Kgm2 |
Intake and exhaust system |
Rated point exhaust back pressure | 10±1kPa |
Exhaust temperature | 680°C |
Exhaust flow | 1450Kg/h |
Intake flow | 1450Kg/h |
Allowable maximum intake resistance (clean filter element) | 3.5KPa |
Allowable maximum intake resistance (dirty filter element) | 6.5KPa |
Intake resistance alarm value | 6.3KPa |
cooling system |
Coolant main content | 50:50 (ethylene glycol: water) |
Coolant outlet temperature | 95°C |
The temperature difference between the inlet and outlet of the
coolant is | 6±1℃ |
Radiator heat dissipation | 138KW |
Radiator flow rate | 440L/min |
Alarm temperature | 104℃ |
Air intake type | air-to-air cooling |
Allowable pressure drop of intercooler | 11-13KPa |
Intercooler heat dissipation | 57KW |
The allowable intake air temperature of the intercooler is | 195±5°C |
The maximum air intake of the intercooler is | 1450Kg/h |
lubrication system |
Engine oil pressure@idle speed | 100±10kPa |
Engine oil pressure@rated point | 550±10KPa |
Maximum allowable oil temperature | ≤120℃ |
Oil pan capacity low | 30L |
Oil pan capacity high | 38L |
Total system capacity | 33.2-41.6L |
Allowable inclination angle of oil pan @forward | 30° |
Allowable inclination angle of oil pan @backward tilt | 30° |
Allowable inclination angle of oil pan @ fuel pump side elevation
angle | 30° |
Allowable inclination angle of oil pan @ exhaust side elevation
angle | 30° |
Fuel System |
Oil pump system type | High pressure common rail |
Injection pressure of injector | 1600bar |
Fuel temperature | 38±5℃ |
The maximum allowable resistance of fuel pump inlet pipe (clean
filter element) | 10KPa |
The maximum allowable resistance of fuel pump inlet pipe (dirty
filter element) | 24.7KPa |
Electric start system |
Standard starter voltage | 24V |
Minimum average starting speed without auxiliary cold start | 130r/min |
Minimum temperature without auxiliary cold start | -15°C |

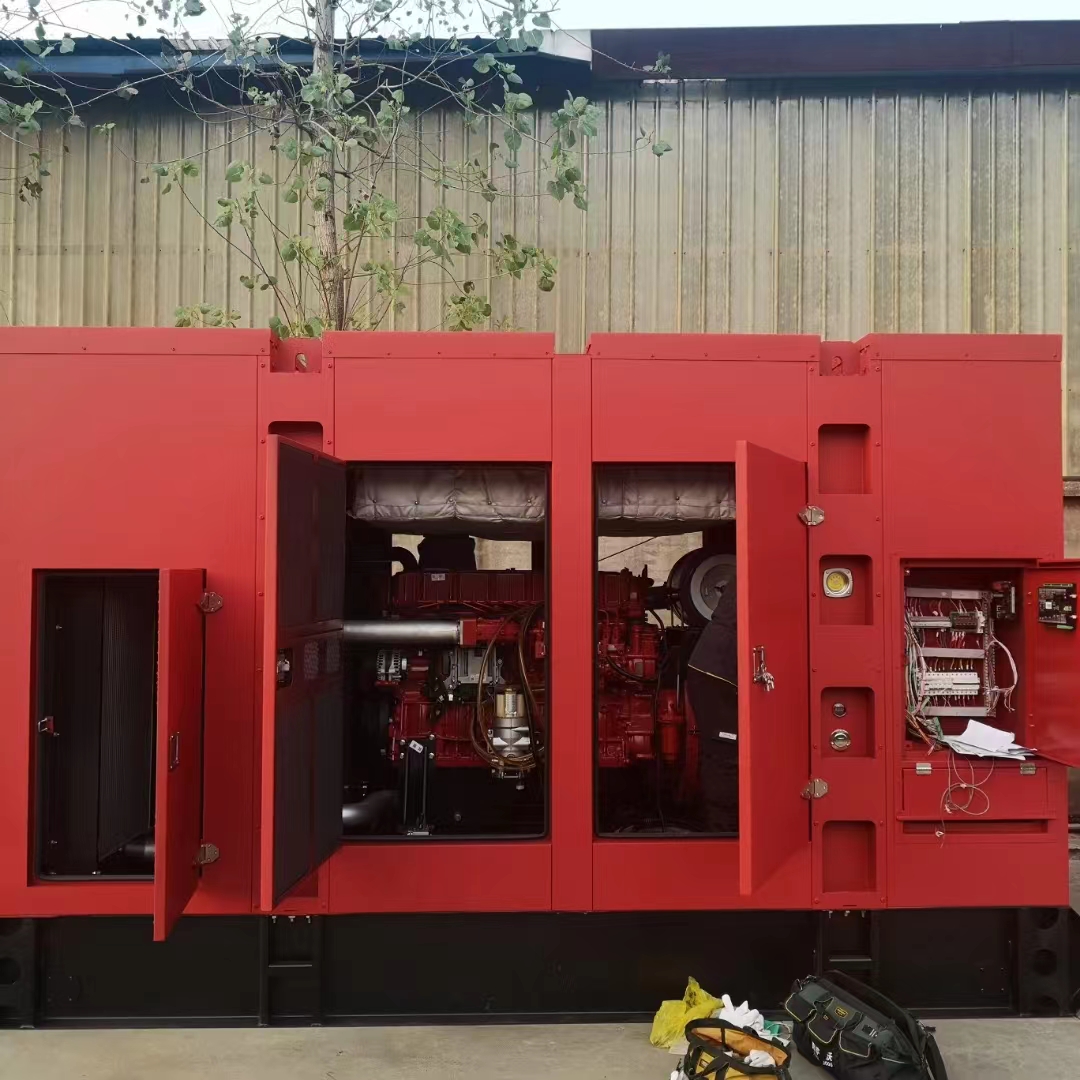

Product Image
