CAMC Green Color Generator Set 270KW Air-To-Air Cooling Original
Quality Transportation Industry
Diesel generator sets have the following advantages:
1. Fuel economy, high thermal efficiency, when the working
conditions change, the change of the fuel consumption rate curve is
relatively flat, and it is also economical under low load.
2. Reliable and durable. Because there is no ignition system, the
fault is low.
3. Wide range of use.
4. Lower harmful emissions.
5. Good fire safety.
Diesel generator set features:
1. There are many levels of stand-alone capacity. The unit ranges
from several kilowatts to tens of thousands of kilowatts, and the
largest domestic unit is several thousand kilowatts.
2. The supporting equipment is compact in structure and flexible in
installation location (water cooling is only 1/10 of 34~82L/KWH
steam turbine)
3. High thermal efficiency, low fuel consumption (thermal
efficiency 30~46%)
4. Quick start, and can quickly reach full power It only takes a
few seconds, and the full load can be reached within 1 minute in an
emergency (normally 5~30MIN). The shutdown process is short and can
be started and stopped frequently.
5. The maintenance operation is simple, the number of people is
small, and the maintenance is easy during the standby period (6).
The comprehensive cost of the construction and power generation of
the diesel generator set is the lowest
Product Description
Machine data |
Type | in-line, six-cylinder, four-valve, four-stroke |
Intake method | Supercharging, air-to-air cooling |
Bore X stroke | 128mmX153mm |
Displacement | 11.81L |
Compression ratio | 12:1 |
Firing sequence | 1-5-3-6-2-4 |
Cylinder distance | 162mm |
Combustion chamber type | ω type |
Engine dimensions (length X width X height) | 1360mmx812mmx1138mm |
Engine weight (including flywheel, excluding generator) | 1065kg |
Moment of inertia of flywheel | 2.9Kgm 2 |
Intake and exhaust system |
Rated point exhaust back pressure | 11KPa |
Exhaust temperature | 560°C |
Exhaust flow | 1250Kg/h |
Intake flow | 1200Kg/h |
Allowable maximum intake resistance (clean filter element) | 3.5KPa |
Allowable maximum intake resistance (dirty filter element) | 6.5KPa |
Intake resistance alarm value | 6.3KPa |
cooling system |
Coolant main content | 50:50 (ethylene glycol: water) |
Coolant outlet temperature | 95°C |
The temperature difference between the inlet and outlet of the
coolant is | 5.53°C |
Radiator heat dissipation | 107KW |
Radiator flow rate | 373L/min |
Alarm temperature | 104℃ |
Air intake type | air-to-air cooling |
Allowable pressure drop of intercooler | 11-13KPa |
Intercooler heat dissipation | 49KW |
The allowable intake air temperature of the intercooler is | 190°C |
The maximum air intake of the intercooler is | 1200Kg/h |
lubrication system |
Engine oil pressure@idle speed | 210KPa |
Engine oil pressure@rated point | 500KPa |
Maximum allowable oil temperature | 130°C |
Oil pan capacity low | 30L |
Oil pan capacity high | 38L |
Total system capacity | 41.6L |
Allowable inclination angle of oil pan @forward | 30° |
Allowable inclination angle of oil pan @backward tilt | 30° |
Allowable inclination angle of oil pan @ fuel pump side elevation
angle | 30° |
Allowable inclination angle of oil pan @ exhaust side elevation
angle | 30° |
Electric start system |
Standard starter voltage | 24V |
Minimum average starting speed without auxiliary cold start | 130r/min |
Minimum temperature without auxiliary cold start | -15°C |

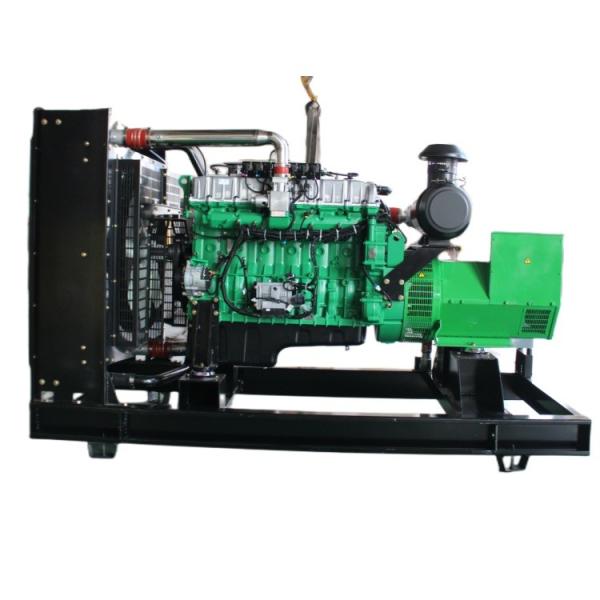

Product Image
