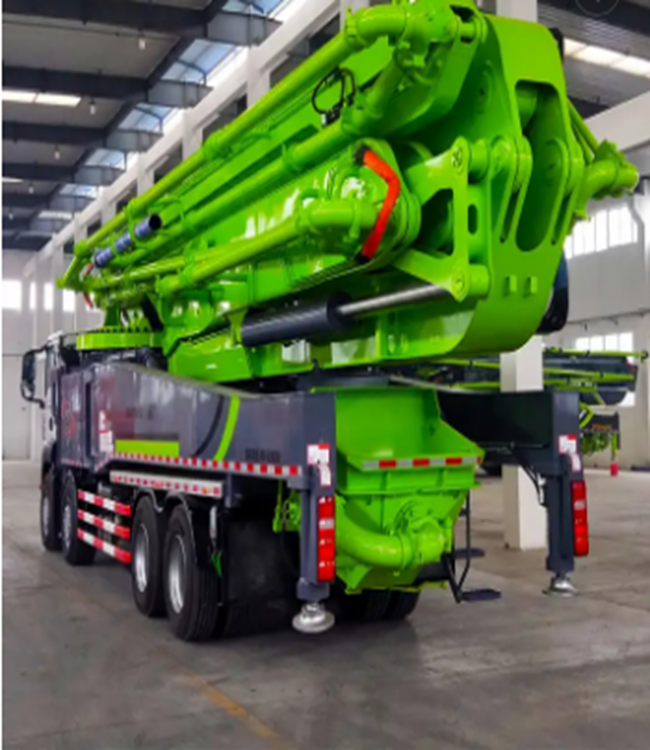

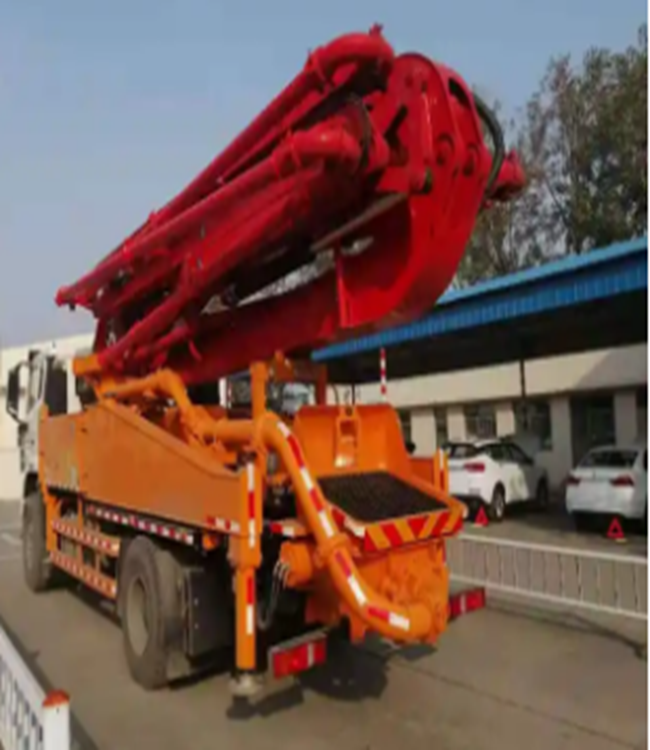

    SINOTRUK Chassis 47 Meters 50m Mobile Concrete Pump Truck Cement Boom Pumping Equipment For Building Construction

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : DXD5180THBL
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500PIECE/ MONTH
    Delivery Time : 10-25Day
    • Product Details
    • Company Profile

    SINOTRUK Chassis 47 Meters 50m Mobile Concrete Pump Truck Cement Boom Pumping Equipment For Building Construction

    SINOTRUK Chassis 47 Meters 50m Mobile Concrete Pump Truck Cement Boom Pumping Equipment For Building Construction


    Product Description


    It adopts Sinotruk chassis, which complies featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.

    Advantages and highlights:

    1. Ultimately Safe Boom.
    2. Lower Structure of High Rigidity.
    3. Hydraulic System of Outstanding Performance
    4 Effectively reduce emissions with the reversing , vulnerability of longer life.
    5. The pumping system adopts electric control reversing , reversing faster and the system impact smaller .
    6 . The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system .


    Chassis and
    complete vehicle parameters
    chassis

    -
    Sinotruk Howo
    Engine brand

    -
    Weichai
    Engine horsepower
    PS
    440
    Bridge number

    -
    2
    wheel base
    mm
    4500
    Total length * total width * total height
    mm
    9000*2500*3470
    Vehicle quality
    g
    18000
    Arm frame and
    support leg
    parameters
    Maximum fabric height
    mm
    30700
    Maximum fabric radius
    mm
    26100
    Maximum fabric depth
    mm
    17000
    Arm frame folding mode

    -
    RZ
    The first arm
    length
    mm
    6600
    corner
    °
    89°
    The second arm
    length
    mm
    5150
    corner
    °
    180°
    The third arm
    length
    mm
    4785
    corner
    °
    180°
    The fourth arm
    length
    mm
    5170
    corner
    °
    235°
    The fifth arm
    length
    mm
    5575
    corner
    °
    180°
    Turn table rotation Angle
    °
    359°
    Open the leg

    -
    X- H

    Front leg spread width
    mm
    5800

    Rear leg spread width
    mm
    6100














    Pumping system

    Maximum theoretical pumping capacity
    m³/h
    100

    Maximum export pressure
    Mpa
    8.5

    The number of theoretical pumps

    Time / minute
    25

    Hydraulic system pressure
    Mpa
    32

    The inner diameter of the conveying cylinder
    mm
    230

    Delivery cylinder trip
    mm
    1400

    Transmission pipe diameter
    mm
    125

    Hydraulic oil cooling mode

    -

    air patenting

    Pumping the concrete collapse degree
    mm
    160-220

    Maximum aggregate size
    mm
    40
